PT62 float and thermostatic (internal air vent) steam traps are designed for draining condensate from all types of low and medium pressure steam heating and process equipment. Typical applications include unit heaters, heat exchangers, driers and jacketed vessels. Horizontal installation.
AVAILABLE TYPES:
PT62HP - with thermostatic air vent
PT62HP S - SLR (with steam lock release)
USE:
Saturated and superheated steam.
INSTALLATION:
Horizontal installation with flow from left to right. The trap should be installed horizontally below the drain point of the equipment in a position such that the float arm is in a horizontal plane and the float rises and falls vertically, with
the flow direction as indicated on the cover.
The word 'TOP' on the nameplate indicates the top side of the trap.
Max. differential pressure range:
PT62HP-65 : 65 psi
PT62HP-145 : 145 psi
PT62HP-200 : 200 psi
PT62HP-300 : 300 psi
PT62HP-350 : 350 psi
AVAILABLE SPARES:
Valve Seat, Ball Float & Lever Assly. Air Vent Assly. Gaskets

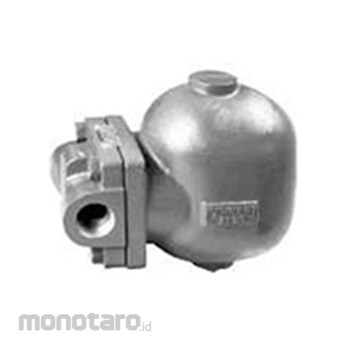

Pennant Ball Float Steam Traps PT62HP
#Grup produk P105733711
Sebelum PPN:
Rp8.699.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection | Screwed (NPT, BSPT, BSP) Flanged*/ Socket Weld *End connection flanges of ASTM A105 forged carbon steel are welded on. |
|---|---|
| Max. Allowable Pressure (psig) | 230<P≤465 |
| Maximum Allowable Temperature (°F) | 750 |
| Max. Operating Pressure (psig) | 360 |
| Body Shell Design Rating (psig) | 465 @750°F |
| Cold Hydro Test Pressure (psig) | 700 |
| Maximum Operating Temperature (°F) | Saturation Temperature |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Modulating discharge. Discharges condensate at steam temperature. Excellent air venting (by thermostatic air vent).Ulasan Produk
