Thermostatic steam trap best suited for use in Clean steam systems. All wetted parts of this trap are manufactured using materials as per FDA guidelines.
APPLICATIONS:
- Sterilizers
- Autoclaves
- CIP/SIP systems
- Block and bleed systems
- Air venting of equipments
- Sterilization of equipments
INSTALLATION:
The trap is designed to be fitted vertically with inlet from the top, facilitating complete drainage. Ensure that the installation is done as per the flow direction marked on the body. Do not expose the trap to superheated conditions. Do not de-pressurize the trap before it cools. This may damage the capsule

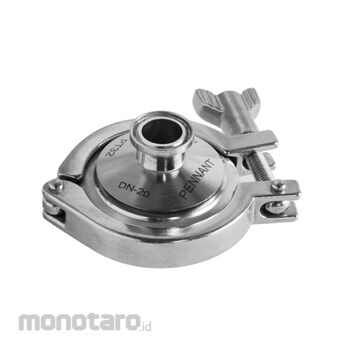

Pennant Thermostatic Steam Traps/Air Vents PT32
#Grup produk P105733678
Spesifikasi
| Connection | Triclamp ends |
|---|---|
| Max. Allowable Pressure (psig) | 150 |
| Maximum Allowable Temperature (°F) | 350 |
| Max. Operating Pressure (psig) | 100 |
| Maximum Operating Temperature (°F) | Saturation Temperature |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Full stainless steel 316L construction- Condensate draining close to steam temperature ensures minimum condensate back-up
- Highly polished for better cleaning and improved corrosion resistance. Surface finish Ra 20 ~25 micro
- Compact and light weight
- Easy to install
- Easy to dismantle and clean
