Thermostatic steam trap with bimetallic column, inbuilt strainer and stainless steel internals. Best suited for steam tracers, header drip legs, heating coils and various process & heating applications.
INSTALLATION:
Trap should be installed in a horizontal plane with cover on the top, and below the drain point. Full port isolation valves should be installed upstream & downstream of the trap. Sufficient upstream piping capacity for accumulation of condensate should be provided to prevent condensate backing up into the equipment - 1mt. minimum.
IMPORTANT:
For new pipelines, ensure that the lines are properly flushed, prior to fitting the traps, to avoid strainer choke up.
AVAILABLE SPARES:
Controller Assly., Gaskets, Strainer Screen.

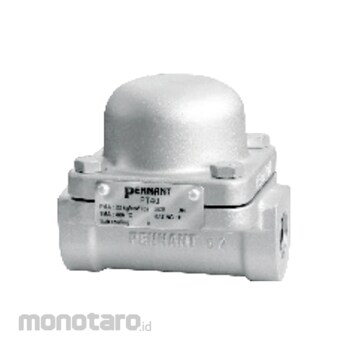

Pennant Thermostatic Steam Traps/Air Vents PT40
#Grup produk P105733650
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP) Socket Weld/Flanged |
|---|---|
| Max. Allowable Pressure (psig) | 450 |
| Maximum Allowable Temperature (°F) | 800 |
| Max. Operating Pressure (psig) | 315/425 |
| Cold Hydro Test Pressure (psig) | 675 |
| Maximum Operating Temperature (°F) | 760 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Stainless steel protected bimetal plates resist corrosion.Excellent resistance to water hammer.
Sub-cooling temperature is adjustable.
Tight shut off. No steam loss.
Long lasting. Modulating discharge. Excellent air venting
capability.
Suitable for both saturated & superheated steam applications.
