The PT31 is a balanced pressure, diaphragm controlled steam trap for draining instrument tracing lines and other similar applications. This steam trap is designed to
remove condensate at temperatures below the saturation temperature of steam. Subcooling available: 22 °F - Standard, 45 °F Optional
INSTALLATION:
Preferably vertical with inlet from above.
AVAILABLE SPARES:
Controller, Strainer Screen, Gasket.

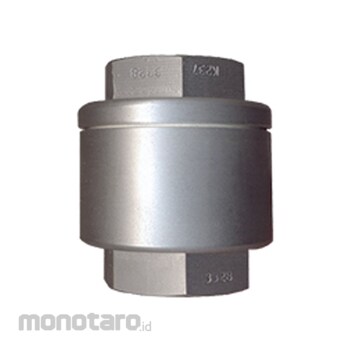

Pennant Thermostatic Steam Traps/Air Vents PT31
#Grup produk P105733641
Sebelum PPN:
Rp2.499.900 - Rp2.699.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP) Socket Weld |
|---|---|
| Max. Allowable Pressure (psig) | 315 |
| Maximum Allowable Temperature (°F) | 428 |
| Max. Operating Pressure (psig) | 315 |
| Cold Hydro Test Pressure (psig) | 475 |
| Maximum Operating Temperature (°F) | 428 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
