ESD protection for outdoor high-speed networks.
Introducing the next generation Ethernet Surge Protector, model ETH-SP-G2, from Ubiquiti. The ETH-SP-G2 is a cost-effective solution for protecting outdoor Ethernet devices from damaging electrostatic discharge and surges. Since all Ubiquiti airMAX devices already have robust ESD protection built in, adding the ETH-SP-G2 to the installation provides an additional layer of protection to the network.
The ETH-SP-G2 is engineered to protect Power-over-Ethernet (PoE) or non-PoE devices with connection speeds of up to 1 Gbps. Two passive, surge-protected RJ45 connections provide maximum equipment compatibility.

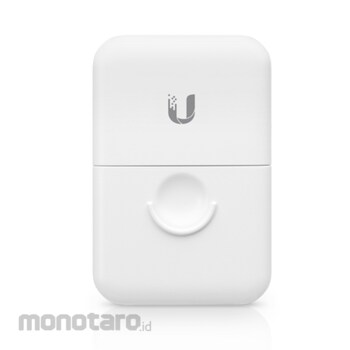

Ubiquiti UniFi Ethernet Surge Protector
#Grup produk P105730112
Spesifikasi
| Interface Connections | (2) RJ45 Female Connectors |
|---|---|
| ESD/EMP Protection | Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/µs |
| DC Spark-Over Voltage (V) | 90 @100V/s |
| Maximum Impulse Spark-over Voltage (V) | 700 @1kV/µs |
| Discharge Current (kA) | 5 (Maximum), 0.5 (Normal) |
| Maximum Capacitance (pF) | 1.0 @1MHz |
| Data Line Protection | RJ45 10/100/1000 Ethernet |
| Operating Temperature (°C) | -30 to 65 (-22 to 149°F) |
| Operating Humidity | 10-90% Noncondensing |
| Dimensions (mm) | 91x61x32.5 |
| Weight (g) | 80 |
| Maximum Insulation Resistance (GΩ) | 1 @50V |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Low-Cost Protection and Fast Installation- Protects Outdoor Ethernet Devices
- Compatible with 10/100/1000 Mbps Networks
