Trendnet Intelligent 1000Base-T to 1000Base-LX Dual Wavelength Single Mode SC Fiber Converter
#Grup produk P105721725
Sebelum PPN:
Rp8.999.900 - Rp12.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dip Switch | Fiber (forced/auto-negotation), LLR (enable/disable) |
|---|---|
| Distance (m) | 10 |
| Humidity | Max. 90% (non-condensing) |
| Media | SMF |
| Ports | 1 x 1000Base-T 1 x 1000Base-LX (simplex SC-type) |
| Pout (dBm) | -9 to -3 |
| Power | 12 |
| Power Adapter | 5V DC, 1A external power adapter |
| Transfer Rate Full-duplex (Mbps) | 2000 |
| Weight (g) | 354 |
| Sensitivity | -20 to -3 |
| Operating Temperature (°C) | 0-40 |
| Protocol | CSMA/CD |
| Dimensions (mm) | 120x88x25 |
| Power Consumption (W) | 2.7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

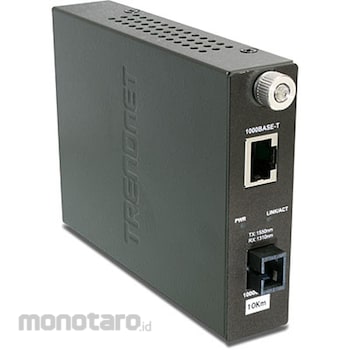

The TFC-1000S10D3 Bi-Directional Intelligent Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Dual Wavelength Single Mode SC-Type fiber converter that supports port-based SNMP reporting and spans distances Up to 10km (6.2 miles). This module must be used with the TFC-1000S10D5 module. Ports include 1 x 1000Base-T (RJ-45) port and 1 x 1000Base-LX (SC Simplex Type) port.
Feature
Compliant with IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX standards1 x 1000Base-T RJ-45 port
1 x 1000Base-LX single-mode bi-directional simplex-SC type fiber port
Provides Dip switch to set: Fiber (Forced/Auto-Negotiation), LLR (Enable/Disable)
Support LLCF (Link Loss Carry Forward, Link Pass Through)
Support LLR (link Loss Return) for Fiber port
Monitor and configure Ethernet or Fiber's duplex mode, LLR, port on/off and receive link down information via management module TFC-1600MM and chassis TFC-1600
Status LED indicators for Power and Link/Activity
Wall mountable
Optional 19Inch system chassis with redundant power supply (TFC-1600), holds Up to 16 TFC series Media Converters
