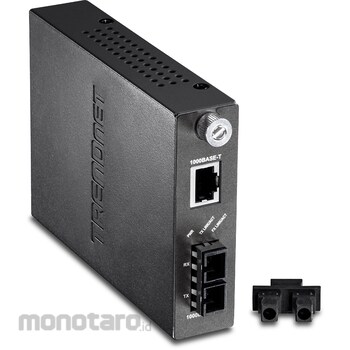

Trendnet Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter
#Grup produk P105721707
Spesifikasi
| Certifications | CEFCC |
|---|---|
| Data Transfer Rate | Gigabit Ethernet 2000 Mbps (full duplex) |
| Device Interface | 1 x Gigabit port, 1 x SC type fiber port, LED indicators |
| Dip Switch | LLCF (enable & disable) |
| Distance (m) | 550 |
| Jumbo Frame (KB) | Up to 9 |
| Operating Humidity | Max. 90% non-condensing |
| Operating Temperature (°C) | 0-40 |
| Optical Input Power (dBm) | -18 to 0 |
| Optical Output Power (dBm) | -9 to -3 |
| Power Budget (dBm) | 8.5 |
| Protocol | CSMA/CD |
| Standards | IEEE 802.3ab (1000Base-T)IEEE 802.3z (1000Base-SX)IEEE 802.3x |
| Wave Length (Nm) | 850 |
| Weight (g) | 280 |
| Dimensions (mm) | 120x88x25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
TRENDnet's Intelligent 1000Base-T to 1000Base-SX Multi-Mode SC Fiber Converter, model TFC-1000MSC, is compatible with the TFC-1600 chassis system or can function as a standalone unit. This multi-mode fiber converter is an SC fiber converter that supports SNMP (when used TFC-1600MM) and spans distances Up to 550m (1,800 ft.). Ports include a 1000Base-T (RJ-45) port and a 1000Base-SX (SC-Type) fiber port.
