Trendnet 100Base-TX to 100Base-FX Multi Mode SC Fiber Converter
#Grup produk P105721637
Spesifikasi
| Certification | FCC,CE |
|---|---|
| Dip Switch (FX) | Duplex mode (half/full) |
| Distance (m) | 2000 |
| Humidity | Max. 90% (non-condensing) |
| Media | MMF |
| Ports | 1 x 10/100Base-TX1 x 100Base-FX (SC-type) |
| Pout (dBm) | -19 to 14 |
| Power | 13 |
| Power Adapter | 5V DC, 1A external power adapter |
| Protocol | CSMA/CD |
| Sensitivity | -32 to 14 |
| Standard | IEEE802.3 10Base-T, IEEE 802.3u 100Base-TX and 100Base-FX |
| Supported Frame Size | Standard Ethernet Up to 1518bytes |
| Operating Temperature (°C) | 0-40 |
| Transfer Rate Full-duplex (Mbps) | 200 |
| Wave Length (Nm) | 1300 |
| Weight (g) | 354 |
| Dimensions (mm) | 120x88x25 |
| Power Consumption (W) | 1.8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

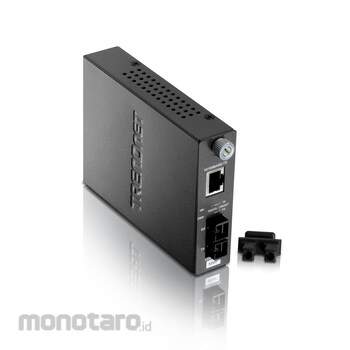

The TFC-110MSC Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Multi Mode SC-Type fiber converter spanning distances Up to 2km (1.2 miles). Ports include 1 x 10/100Base-TX (RJ-45) port and 1 x 100Base-FX fiber port (SC-Type).
Feature
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX / 100Base-FX standards1 x 10/100Base-TX auto-negotiation RJ-45 port
Auto-negotiation 10/100Mbps connection speed and Half/Full-duplex mode on TX port
Auto MDIX for 10/100Base-TX port
1 x 100Mbps fiber port with multi-mode SC-type connector
Status LED indicators for Power, Link/Activity, Full-Duplex, and Speed
Dip-switch for full and half duplex selection on fiber port
Wall mountable
Optional 19Inch system chassis with redundant power supply (TFC-1600), holds Up to 16 TFC series Media Converters
