Otax DIP switch K Series Rotary Driver Type
#Grup produk P105720179
Spesifikasi
| Specification | (Step) 10 Positions |
|---|---|
| Rated | 0.4VA AC / DC20V MAX |
| Terminal Shape | Surface Mount |
| Movement Force | 98mN.m (maximum) |
| Code | Real Code |
| Insulation Resistance (MΩ) | Over 1000 |
| Electrical Durability | 20000 steps |
| Dielectric Strength | AC300V 1 minute |
| Operation Part Shape | Driver Type |
| Operating Position | Vertical Shape |
| Internal capacity | 1 Piece |
| Contact Resistance (miliΩ) | Less than 50 |
| Operating Temperature Range (°C) | -30 to +85 |
| Storage Temperature Range (°C) | -30 to +85 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

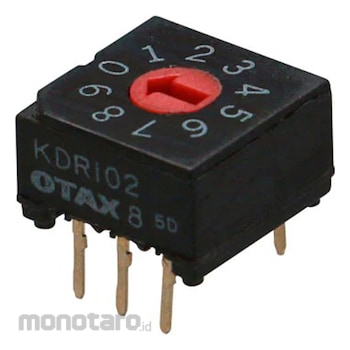

This is a rotary digital code switch mounted on a printed circuit board. Based on the results of the previous disc knife bite contact method, the knife edge high pressure contact method and the contact switching method using steel balls have realized a stable contact and long life structure. This rotary digital cord switch, which is completely sealed for smooth rotation and cleaning, can obtain the cord output in direct numerical value.
Warning
The number of reflows will be 2 times.Ulasan Produk
