Spesifikasi
Bore Diameter d (mm) | 12 |
---|---|
Outside Diameter D (mm) | 32 |
Width B (mm) | 10 |
Recess Diameter D2 (mm) | 27.34 |
Diameter of Shaft Abutment da (mm) | min. 16.2; max. 18.4 |
Diameter of Housing Abutment Da (mm) | 27.8 |
Fatigue Load Limit Pu (kN) | 0.132 |
Limiting Speed (rpm) | 26000 |
Basic Dynamic Load Rating C (kN) | 7.28 |
Basic Static Load Rating C0 (kN) | 3.1 |
Bearing Material | Bearing Steel |
Bore Type | Cylindrical |
Cage | Sheet Metal |
Coating | Without |
Lubricant | Grease |
Number of Rows | Single Row |
Outer Ring | Snap Ring (Fitted) |
Reference Speed (rpm) | 50000 |
Sealing | Shield on Both Sides |
Sealing Type | Non-Contact |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Description
Single row deep groove ball bearing, with snap ring groove and seals or shields on one or both sides, are particularly versatile, have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than other bearing types. The snap ring, fitted in an annular groove in the outer ring, facilitates axial location of the bearings within their housings. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out.
Warning

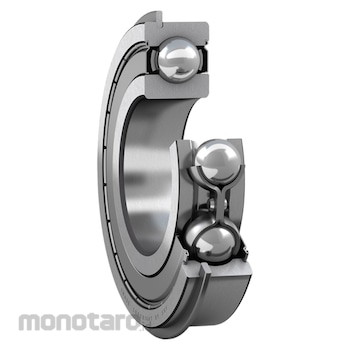

Image may differ from product. See the technical specification for details.Feature
- Snap ring facilitates axial location within housing- Integral sealing prolongs bearing service life
- Typical benefits of single row deep groove ball bearings
