Simple, dependable worldwide communications at an affordable price.
1136 channels
160 programmable, 242 ITU SSB duplex, 72 ITU SSB simplex and 662 ITU FSK duplex channels are available.
Rugged construction
The highest quality components are used throughout. Constructed in a die-cast aluminum chassis with surface mount components, the IC-M710 is designed for long hours of operation in the harsh marine environment.
Alphanumeric readout
The large, easy-to-read display shoes status at a glance. Seven characters can be programmed into each memory channel to conveniently display station names, ship names, etc.
150 W of output
A full 150 W (PEP) of output power is available for reliable long distance communication. A large cooling fan, in combination with the aluminum chassis, allows continuous transmission at full output power—even during demanding RTTY (radio teletype) and NBDP (narrow band direct printing) operation.
Automatic tuning function
An automatic tuning function is available when using the IC-M710 in combination with the optional AT-140 for quick and easy antenna tuning. Tuning is fully automatic. When you push the PTT on a new frequency, the antenna tuner quickly tunes the antenna automatically.
Easy to use
Two large memory and frequency dials allow quick and easy operation.
And more…
Covers all allowed bands between 1.6 and 27.5 MHz
General coverage receiver
Modes: SSB, RTTY, CW and AM
2182 kHz alarm built-in (optional for General versions)
RF gain control
Audio activated squelch
Terminals for frequency/mode control via NMEA interfacing
Direct keypad channel selection entry
Large, front-mounted speaker
Direct keypad channel selection entry
Weather fax ready
Backlight control
CW full break-in and semi break-in Highly accurate position fixing GPS navigator with clear color LCD

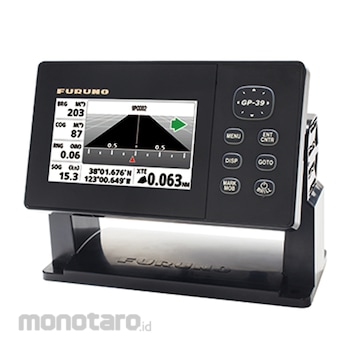

The FURUNO GPS navigator GP-39 provides accurate and reliable position fixing, thanks to a 12-channel GPS receiver combined with integrated SBAS (WAAS/EGNOS/MSAS) technology.
The GP-39 has various display modes (Plotter, Highway, Steering, NAV data, Satellite monitor and 2 user customizable modes) on the 4.2" color LCD. Up to 3,000 points of ship track, 10,000 waypoints and 100 routes (each with up to 30 waypoints) can be stored. The waypoint and route data can be exported/imported via a USB flash drive or signal converter.
The GP-39 can be networked with a fish finder, sonar, radar or other navigation equipment for feeding highly accurate navigation data.
Spesifikasi
Screen Type (inch) | 4.2 Color LCD |
---|---|
Screen Resolution (pixels) | 480 (V)x272 (H) |
GPS Antenna | External |
Display Modes | Plotter, Highway, Steering, NAV Data, Satellite monitor, User Display (Digital, Speedometer, COG) |
Language | English, French, Spanish, Chinese, Vietnamese, Malay, Indonesian, Thai GPS / SBAS (WAAS/EGNOS/MSAS) |
Receiving Type | GPS: 12 channels parallel, 12 satellites tracking, C/A code, all-in-view SBAS: 2 channels |
Accuracy (m) | GPS: 10 (95% of the time, HDOP≤4), WAAS: 3 (95% of the time, HDOP≤4), MSAS: 7 (95% of the time, HDOP≤4) |
Waterproofing | Display unit: IP55 Antenna unit: IP56 |
Power Supply | 12-24 VDC : 0.7-0.3 A |
Memory Capacity | 3,000 ship's track points 10,000 waypoints with comments 100 routes with 30 waypoints/route |
Receiving Frequency (MHz) | L1 : 1575.42 ± 1.023 |
