Phoenix Contact Sensor/Actuator Cable SAC-5P-M12MS/M12FS
#Grup produk P105626466
Spesifikasi
| Conductor Material | Bare Cu litz wires |
|---|---|
| Conductor Resistance (ohm/km) | Approx. 57 |
| Degree of Protection | IP65 |
| Flame Resistance | In acc. with UL FT-2 |
| Halogen-Free | In accordance with DIN VDE 0472 part 815 |
| Insulation Resistance (MΩ) | ≥ 20 *km |
| Length of Cable (m) | 1.5 |
| Number of Positions | 5 |
| Operating Ambient Temperature (°C) | -40 to 80 (cable, fixed installation) |
| Other Resistance | Hydrolysis and microbe resistant |
| Part Number | 1416104 |
| Rated Current (A) | '4 at 40°C |
| Rated Voltage (V AC) | 48 |
| Rated Voltage (V DC) | 60 |
| Special Properties | Free from silicone and cadmium |
| Test Voltage Core (V) | 3000 (Spark test) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

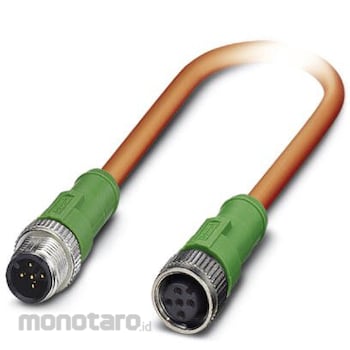

Sensor/actuator cable, 5-position, PUR halogen-free, welding sputter-resistant, orange RAL 2003, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 1.5 m, for robots and drag chains
