SKF Round and Triangular Flanged Housings for Insert Bearing
#Grup produk P105610313
Spesifikasi
| Abutment Diameter H2 (mm) | min. 87 |
|---|---|
| Coating | Zinc-coated |
| Diameter of Spherical Seat Da (mm) | 80 |
| Fastening Bolt Hole Type | Plain |
| Flanged Housing Type | Round |
| Grease Fitting | Without |
| Housing Overall Width (mm) | 20 |
| Housing Type | Flanged |
| Length of Attachment Bolt Hole N (mm) | 13.5 |
| Material Thickness A4 (mm) | 3.5 |
| Material, Housing | Pressed steel |
| Number of Bolt Holes for Fasteners | 4 |
| Overall Length H (mm) | 148 |
| Permissible Radial Load (kN) | max. 7.5 |
| Pitch Diameter of Attachment Bolts J (mm) | 119 |
| Recommended Diameter for Attachment Bolts (inch) | 0.5 |
| Recommended Diameter for Attachment Bolts (mm) | 12 |
| Relubrication Hole | Without |
| Spherical Seating Diameter (mm) | 80 |
| Width Housing Half A2 (mm) | 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

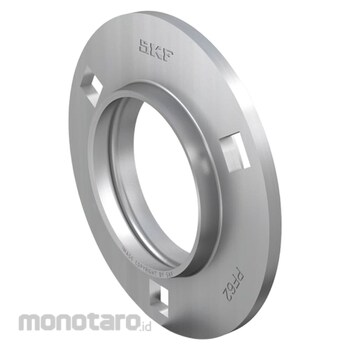

Round flanged pressed steel housings for insert bearings are lightweight and made from cold-rolled steel, and are zinc-coated for corrosion protection. The housings are cost-effective and designed for simple applications with light loads. The two-part housing, which has no provision for relubrication, can be ordered separately from the insert bearing, making a large number of combinations possible.
Warning
Image may differ from product. See technical specification for details.Feature
- Lightweight- Cost-effective
- Flexible bearing and housing combinations
- Simple to mount
- Protection against corrosion
