It is a switch that realizes an economical price by thorough VA and silver-saving design.
The contact part uses a seesaw-type slide mechanism (patented) to ensure contact stability and high reliability, and can be used with a wide range of current capacities from 1mA to 12A.
In addition, self-extinguishing UL94V 10 phenol resin is used for the box material, and it has excellent insulation and sag resistance. All types (except HLS308A) are UL and CSA certified products and are highly reliable switches.

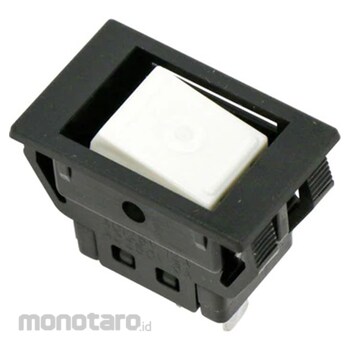

Nidec Rocker Switch HLS
#Grup produk P105606000
Spesifikasi
| RoHS Directive | Compatible with 10 substances |
|---|---|
| Electrical Life (times) | 15000 |
| Terminal Shape | Tab terminal # 187 TAB: # 187 (t = 0.5) |
| Number of Poles | Faraday Paradox |
| Rated | Maximum: AC125V 12A / AC250V 6A, Minimum: AC / DC6V 1mA |
| Contact Resistance (miliΩ) | 20 or less (DC2-4V 1A) |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Withstand Voltage (V) | AC 1500 for 1 minutes |
