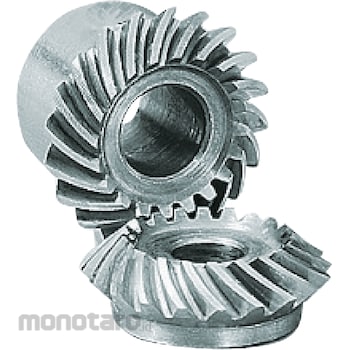

KG Spiral Miter Gear
#Grup produk P105592956
Spesifikasi
| Material | S45C (carbon steel for machine structure) |
|---|---|
| Assembly Distance (mm) | 26 |
| Twist Angle (°) | 35 |
| Hole Length (mm) | 14.5 |
| Tooth Tip Angle (°) | 48 (21ft) |
| Gear accuracy | JIS B 1704 (ISO) 3rd grade (Induction hardening product: 4th grade) |
| Pressure Angle (°) | 20 |
| Overall Length (mm) | 15.67 |
| Module | 1 |
| Number of Teeth | 30 |
| Reference Circle Diameter (mm) | 30 |
| Tooth Width (mm) | 6.2 |
| Hole Diameter (mm) | 10 |
| Tooth Tip Circle Diameter (mm) | 31.09 |
| Hub Length (mm) | 9 |
| Hub Outer Diameter (mm) | 22 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
If the mating gear is used in combination with a product other than our company, problems may occur.Feature
The part number H at the end is induction hardened.Use
Used for general industrial machinery, food machinery, medical equipment, etc.Ulasan Produk
