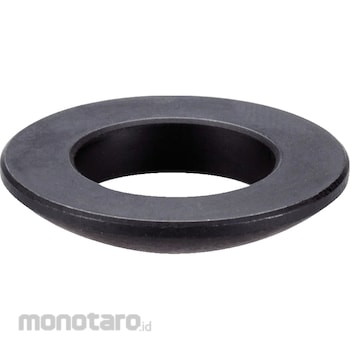

HALDER Spherical Washers
#Grup produk P105592929
Spesifikasi
| Material | Hardened steel (carburized and hardened), Finishing: Phosphate coating treatment |
|---|---|
| D1 (mm) | 6.4 |
| Compatible Bolt | M6 |
| Coefficient of Friction | 0.14 |
| d3 (mm) | 12 |
| H2 (mm) | 2.3 |
| h4 (Height when Combined) (mm) | Conical sheet D type: 4.2/Conical sheet G type: 5.4 |
| Applicable Bolt Nominal Diameter | 6 |
| Withstand Load (static load) (kN) | max. 9 |
| Screw Tightening Torque (N m) | max. 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Used in combination with a conical sheet when the bolt and seat surface are not vertical.Corrects the angle of the seat surface up to about 3 degrees.
Use
For fixing bolts on inclined surfaces such as castings and straps.Ulasan Produk
