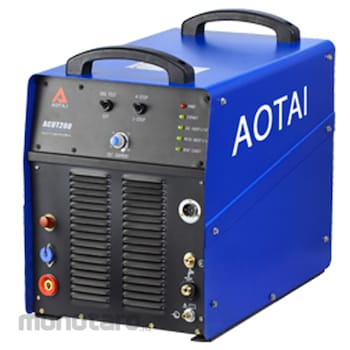

AOTAI Plasma Cutting Inverter CNC System
#Grup produk P105578938
Spesifikasi
| Frequency (Hz) | 50/60 |
|---|---|
| Phase | 3 |
| Rated Input Capacity (kVA) | 42.8 |
| Rated Input Current (A) | 65 |
| Air Pressure (MPa) | 0.4-0.55 |
| Arc Ignition Method | Special HF |
| Clean Cut Thickness (mm) | 10-24 |
| Dimensions (mm) | 635x399x542 |
| Duty Cycle (%) | '100%@200A at 40°C |
| Maximum Cutting Thickness (mm) | 55 |
| OCV (V) | 350 |
| Output Current Range (A) | 30-200 |
| Protection Class | IP23 |
| Rated Input Voltage (V) | 380 ± 10% |
| Water Flow Rate (L/minute) | 1.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Inverter technology provides a low weight power source that can be easily maintained or carried by the welder. - ACUT series is water cooled power source to provide a nonstop work with 100% duty cycle with full power.
- ACUT series provides cutting of steel, stainless steel, copper, aluminum, etc.
- Self-diagnostic and different protections help in work and maintain power source.
