Product Lines : Industrial Tools
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending

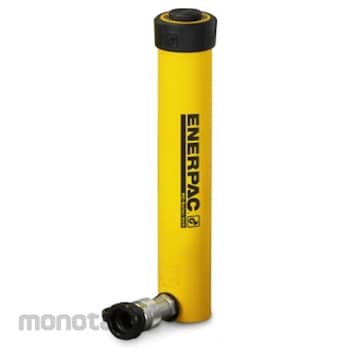

Enerpac Hydraulic Cylinder 15 Ton (Single Acting)
#Grup produk P105576745
Sebelum PPN:
Rp11.999.900 - Rp26.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 15 |
| Maximum Cylinder Capacity Advance (kN) | 142 |
| Base Mounting Holes Thread Depth Z (mm) | 12 |
| Collar Thread Length X (mm) | 30 |
| Collar Thread W (inch) | 2 3/4-16UN |
| Cylinder Bore Diameter E (mm) | 50.8 |
| Cylinder Effective Area Advance (cm²) | 20.3 |
| Material | Steel |
| Outside Diameter D (mm) | 70 |
| Plunger Diameter F (mm) | 41.3 |
| Plunger Thread Length P (mm) | 25 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Surface Treatment | Paint |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Ulasan Produk
Tidak ada ulasan
