Product Lines : Industrial Tools
- Unique GR2 Bearing Design, reduces wear, extending life
- Base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy-duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- CR-400 coupler and dust cap included on all models
- Plunger wiper reduces contamination, extending

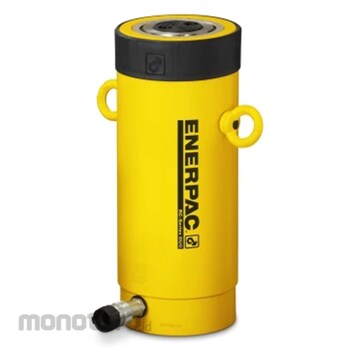

Enerpac Hydraulic Cylinder 100 Ton (Single Acting)
#Grup produk P105576736
Sebelum PPN:
Rp75.999.900 - Rp95.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 100 |
| Maximum Cylinder Capacity Advance (kN) | 933 |
| Base Mounting Holes Thread Depth Z (mm) | 25 |
| Base to Advance Port H (mm) | 41 |
| Collar Thread Length X (mm) | 44 |
| Collar Thread W (inch) | 6 7/8-12UN |
| Cylinder Bore Diameter E (mm) | 130.2 |
| Cylinder Effective Area Advance (cm²) | 133.1 |
| Material | Steel |
| Outside Diameter D (mm) | 178 |
| Plunger Diameter F (mm) | 104.8 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J (mm) | 71 |
| Surface Treatment | Paint |
