Product Lines : Industrial Tools
- The Economy pump is best suited to power small to medium size cylinders or hydraulic tools. Its lightweight and compact design make it ideal for applications which require easy transport of the pump. The universal motor works well on long extension cords or generator-driven electrical power supplies.
- Provides advance-retract of single-acting cylinders
- Ideal for punching applications
- For applications not requiring load holding
- 3 m cord with pendant controls motor and valve operation.
- Lightweight and compact design: 11,8 to 18,6 kg
- Large easy-carry handle for maximum portability
- Two-speed operation reduces cycle times for improved productivity
- 230 VAC 50/60-cycle universal motor will operate under poor voltage supply
- 24 VAC remote motor control, 3 m length for operator safety
- Starts under full load
- High strength molded shroud, with integral handle, protects motor from contamination and damage
- Designed for intermittent duty cycle.

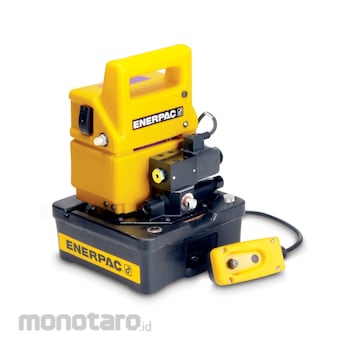

Enerpac Economy Electric Hydraulic Pump
#Grup produk P105576514
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 700 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm³) | 1900 |
| Usable Oil Capacity (L) | 1.9 |
| Pump Control | Pendant |
| Motor Electrical (V/Hz) | 230-50/60 |
| Current Draw (Amps) | 9.5 |
| Dimension A (mm) | 244 |
| Duty cycle | Intermittent |
| Maximum Flow at Rated Pressure (L/minute) | 0.32 |
| Motor Size (Hp) | 0.5 |
| Motor Voltage (V) | 208-240 |
| Oil Displacement per Stroke 1st Stage (L/minute) | 3.31 |
| Oil Displacement per Stroke 2nd Stage (L/minute) | 0.32 |
| Power Source | Electric |
| Pump Operation | Dump |
| Sound Level (dBA) | 85 |
| Valve Function | Advance / Retract |
