Product Lines : Industrial Tools
- High-efficiency pump design – higher oil flow and by-pass pressure
- High-strength, moulded electrical box protects electronics, power supplies and LCD readout and stands up to harsh industrial environments
- IP54 protection and isolation class
- Back-lit LCD provides self test, diagnostic and read-out capabilities never before offered on an industrial pump (included on pump with electric valves, optional on other models)
- Totally enclosed, fan-cooled industrial electric motors for extended life
- User adjustable relief valve built-in on manual and solenoid valves. Oil ports on valves are 3/8" NPTF
- Steel fan guard on all electric motors
- Full sight oil level glass
- 40 micron filter breather with splash guard
- Durable steel reservoirs

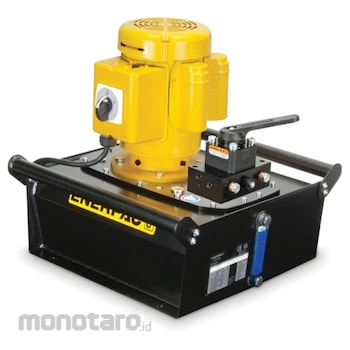

Enerpac Hydraulic Pump, Elec. Induction, VM43 STD 380V
#Grup produk P105576417
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Cylinder Compatability | Double-acting |
| Reservoir Capacity (cm³) | 20000 |
| Maximum Flow at Rated Pressure (L/minute) | 1.64 |
| Output Flow Rate (L/minute) | 11.61 at 7bar, 11.27 at 50bar, 1.68 at 350bar, 1.64 at 700bar, |
| Power Source | Electric |
| Pump Control | Manual |
| Dimension A (mm) | 558 |
| Duty cycle | Extended |
| Motor Frequency (Hz) | 50/60 |
| Motor Phases (Ph) | 3 |
| Motor Size (kW) | 2.24 |
| Motor Voltage (V) | 380-415 |
| Relief Valve Adjustment Range (bar) | 70 - 700 |
| Sound Level (dBA) | 75 |
| Usable Oil Capacity (cm³) | 20 |
| Valve Function | Advance / Hold / Retract |
| Valve Model | VM43 |
| Valve Operation | Manual |
| Valve Type | 4-way, 3-position, Tandem Center |
