Product Lines : Industrial Tools
- Features Z-Class high efficency pump design, higher oil flow and bypass pressure
- Two-speed operation and high by-pass pressure reduces cycle time for improved productivity
- Internal relief valves. One is factory set for overload protection while the second is user adjustable - for pre-setting maximum system pressure
- Sight gauge on 1 and 2 gallon and level gauge on 2.5, 5 and 10 gallon reservoirs allow quick and easy oil level monitoring
- Optional heat exchanger warms exhaust air to prevent feezing and cools the oil

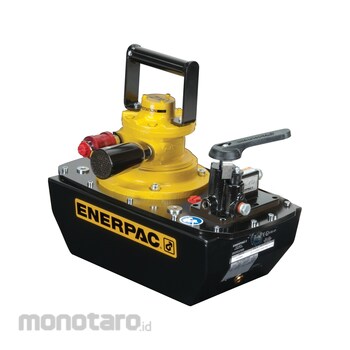

Enerpac Hydraulic Pump, Air, VM32 4L
#Grup produk P105576338
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm³) | 4000 |
| Usable Oil Capacity (L) | 1.3 |
| Maximum Flow at Rated Pressure (L/minute) | 1.3 |
| Dimension A (mm) | 295 |
| Dimension B (mm) | 142 |
| Air Consumption (L/minute) | 2840 |
| Dimension C (mm) | 279 |
| Dimension H (mm) | 429 |
| Dimensions d (mm) | 152 |
| Output Flow Rate (L/minute) | 14.0 at 7bar, 11.0 at 50bar, 1.8 at 350bar, 1.3 at 700bar |
| Power Source | Air |
| Relief Valve Adjustment Range (bar) | 70 - 700 |
| Sound Level (dBA) | 94-97 |
| Valve Function | Advance / Retract |
| Valve Model | VM32 |
| Valve Operation | Manual |
| Valve Type | 3-way, 2-position |
