- Two-speed operation allows for faster fill, reducing cycle times for many testing applications soluble oils and petroleum
- Large release knob for improved control of pressure release
- Outlet ports are 3/4inch-16 cone for 40,000 psi rating

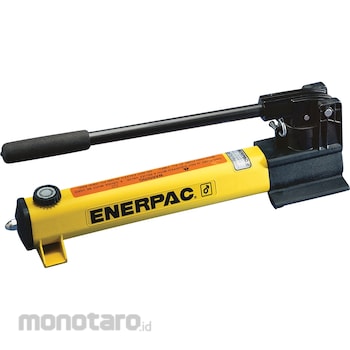

Enerpac Hydraulic Hand Pump
#Grup produk P105576028
Spesifikasi
| Maximum Operating Pressure (bar) | 2800 |
|---|---|
| Pressure Rating 1st Stage (bar) | 13 |
| Pressure Rating 2nd Stage (bar) | 2800 |
| Cylinder Compatability | Single-acting |
| Reservoir Capacity (cm³) | 983 |
| Dimension A (mm) | 344 |
| Dimension B (mm) | 558 |
| Dimension C (mm) | 35 |
| Dimension E (mm) | 31 |
| Dimension F (mm) | 133 |
| Dimension H (mm) | 527 |
| Dimensions j (mm) | 29 |
| Maximum Flow Rated Pressure (cm³/stroke) | 0.61 |
| Maximum Handle Effort (kg) | 48.1 |
| Oil Displacement per Stroke 1st Stage (cm³) | 16.22 |
| Oil Displacement per Stroke 2nd Stage (cm³) | 0.61 |
| Piston Stroke (mm) | 25.4 |
| Power Source | Manual |
| Usable Oil Capacity (cm³) | 983 |
| Valve Operation | Manual |
