Product Lines : Industrial Tools
- Composite bearings prevent metal-to-metal contact, increasing cylinder life and resistance to side-loads of up to 10%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- For protection against load-induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20-ton and above.
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dust cap included on all models
- All cylinders meet ASME B-30.1 standards

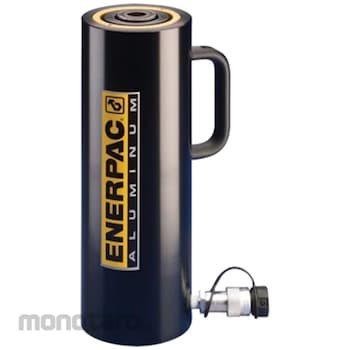

Enerpac Hydraulic Cylinder Aluminum 50 Ton (Single Acting)
#Grup produk P105575940
Sebelum PPN:
Rp41.999.900 - Rp54.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 50 |
| Maximum Cylinder Capacity Advance (kN) | 496 |
| Base Mounting Holes Bolt Circle U (mm) | 110 |
| Base Mounting Holes Thread Depth Z (mm) | 12 |
| Base to Advance Port H (mm) | 30 |
| Cylinder Bore Diameter E (mm) | 95 |
| Cylinder Effective Area Advance (cm²) | 70.9 |
| Material | Aluminium |
| Outside Diameter D (mm) | 130 |
| Plunger Diameter F (mm) | 80 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J (mm) | 50 |
| Saddle Maximum Tilt Angle Radius (degrees) | 5 |
| Surface Treatment | Anodized |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
