Product Lines : Industrial Tools
- Double-acting for rapid retraction, regardless of hose lengths and system losses
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Steel base plate and saddle for protection against load- induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- Built-in safety valve prevents accidental over-pressurization

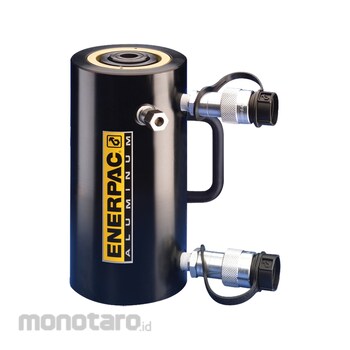

Enerpac Hydraulic Cylinder Aluminum 30 Ton (Double Acting)
#Grup produk P105575898
Sebelum PPN:
Rp44.999.900 - Rp55.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 34.2 |
| Base to Advance Port H (mm) | 30 |
| Cylinder Bore Diameter E (mm) | 75 |
| Cylinder Effective Area Advance/Retract (cm²) | 44.2/24.5 |
| Material | Aluminium |
| Optional Tilt Saddle Addition To Collapsed Height A1 (mm) | 11 |
| Outside Diameter D (mm) | 125 |
| Plunger Diameter F (mm) | 50 |
| Plunger Type | Solid |
| Return Type | Double-Acting, Spring Return |
| Saddle Diameter J (mm) | 41 |
| Saddle Maximum Tilt Angle Radius (degrees) | 5 |
| Surface Treatment | Anodized |
| Top To Retract Port I (mm) | 55 |
