Product Lines : Industrial Tools
- Aluminum Lock Nut provides mechanical load holding for extended periods
- Hardened steel stop ring increases cylinder life and resistance to side-loads of up to 5%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Composite bearings increase cylinder life and side load resistance
- Handles included on all models
- Steel base plate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards

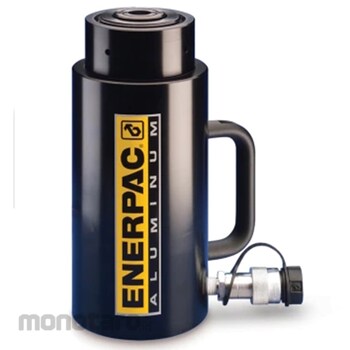

Enerpac Hydraulic Cylinder Aluminum 20 Ton Lock-nut
#Grup produk P105575889
Sebelum PPN:
Rp43.999.900 - Rp51.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 20 |
| Maximum Cylinder Capacity Advance (kN) | 218 |
| Base Mounting Holes Bolt Circle U (mm) | 70 |
| Base Mounting Holes Thread Depth Z (mm) | 12 |
| Base Mounting Holes Thread V | M6 |
| Base to Advance Port H (mm) | 27 |
| Cylinder Bore Diameter E (mm) | 63 |
| Cylinder Effective Area Advance (cm²) | 31.2 |
| Lock Nut Height S (mm) | 50 |
| Material | Aluminium |
| Outside Diameter D (mm) | 85 |
| Plunger Diameter F (mm) | Tr 55x4 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Surface Treatment | Anodized |
