Product Lines : Industrial Tools
- Hollow plunger design allows for both pull and push forces
- Composite bearings increase cylinder life and side load resistance
- Hard coat finish on all surfaces resists damage and extends cylinder life
- Handles included on all models
- Floating center tube increases seal life
- Steel baseplate and saddle for protection against load-induced damage
- Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
- High-strength return spring for rapid cylinder retraction
- CR-400 coupler and dustcap included on all models
- All cylinders meet ASME B-30.1 standards

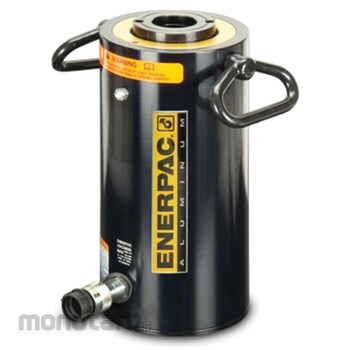

Enerpac Hydraulic Cylinder Aluminum 150 Ton Hollow
#Grup produk P105575834
Sebelum PPN:
Rp139.999.900 - Rp329.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 150 |
| Maximum Cylinder Capacity Advance (kN) | 1588 |
| Base Mounting Holes Bolt Circle U (mm) | 245 |
| Base Mounting Holes Thread V | M10 |
| Base to Advance Port H (mm) | 61 |
| Cylinder Bore Diameter E (mm) | 205 |
| Cylinder Effective Area Advance (cm²) | 225.8 |
| Material | Aluminium |
| Outside Diameter D (mm) | 275 |
| Plunger Diameter F (mm) | 150 |
| Plunger Type | Hollow |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J (mm) | 145 |
| Saddle Protrusion from Plunger K1 (mm) | 14 |
| Surface Treatment | Anodized |
