Product Lines : Industrial Tools
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 included on all models

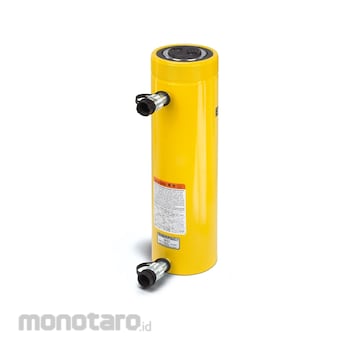

Enerpac Hydraulic Cylinder 75 Ton (Double Acting)
#Grup produk P105575755
Sebelum PPN:
Rp85.999.900 - Rp139.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 75 |
| Maximum Cylinder Capacity Advance (kN) | 718 |
| Base to Advance Port H (mm) | 36 |
| Cylinder Bore Diameter E (mm) | 42.9 |
| Cylinder Effective Area Advance (cm²) | 102.6 |
| Cylinder Effective Area Retract (cm²) | 31.4 |
| Material | Steel |
| Outside Diameter D (mm) | 73 |
| Plunger Diameter F (mm) | 34.9 |
| Plunger Type | Solid |
| Return Type | Double-Acting, Hydraulic Return |
| Saddle Diameter J (mm) | 35 |
| Saddle Protrusion from Plunger K1 (mm) | 6 |
| Surface Treatment | Paint |
