Product Lines : Industrial Tools
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Features CR400 Coupler

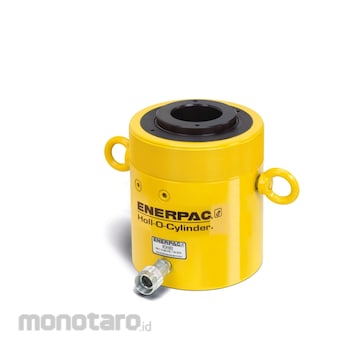

Enerpac Hydraulic Cylinder 60 Ton (Single Acting) Hollow Plunger
#Grup produk P105575746
Sebelum PPN:
Rp49.999.900 - Rp67.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 60 |
| Maximum Cylinder Capacity Advance (kN) | 576 |
| Base to Advance Port H (mm) | 25 |
| Collar Thread Size W | 2 3/4inch-16 |
| Collar Thread W (inch) | 2 3/4-16 |
| Cylinder Bore Diameter E (mm) | 123.9 |
| Cylinder Effective Area Advance (cm²) | 82.3 |
| Material | Steel |
| Outside Diameter D (mm) | 159 |
| Plunger Diameter F (mm) | 35.1 |
| Plunger Type | Hollow |
| Return Type | Single-Acting, Spring Return |
| Surface Treatment | Paint |
