Product Lines : Industrial Tools
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links

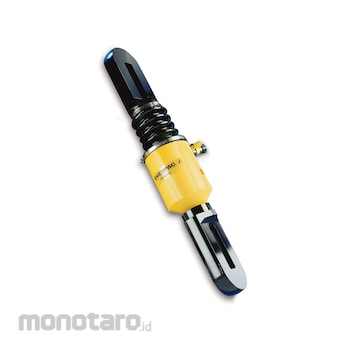

Enerpac Hydraulic Cylinder 55 Ton Pullpac
#Grup produk P105575728
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 55 |
| Maximum Cylinder Capacity Advance (kN) | 105 |
| Stroke (mm) | 153 |
| Collapsed Height A (mm) | 718 |
| Extended Height B (mm) | 871 |
| Base to Advance Port H (mm) | 23 |
| Cylinder Bore Diameter E (mm) | 110.1 |
| Cylinder Effective Area Advance (cm²) | 72.1 |
| Material | Steel |
| Oil Capacity Advance (cm³) | 1096 |
| Outside Diameter D (mm) | 140 |
| Plunger Diameter F (mm) | 69.8 |
| Plunger Internal Thread O (inch) | M5 |
| Plunger Thread Length P (mm) | 8 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J (mm) | 50 |
| Saddle Protrusion from Plunger K1 (mm) | 2 |
| Surface Treatment | Paint |
