Product Lines : Industrial Tools
- High strength alloy steel construction
- Plunger blow-out protection to prevent over-extension
- Hard chrome-plated plunger for long life
- CR-400 coupler and dust cap included on all models
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Single-acting spring return
- Replaceable links

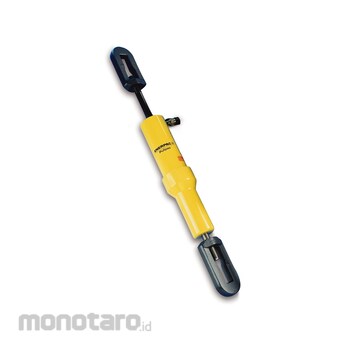

Enerpac Hydraulic Cylinder 30 Ton Pullpac
#Grup produk P105575667
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 326 |
| Stroke (mm) | 154 |
| Collapsed Height A (mm) | 1110 |
| Extended Height B (mm) | 1264 |
| Base to Advance Port H (mm) | 19 |
| Cylinder Bore Diameter E (mm) | 88.9 |
| Cylinder Effective Area Advance (cm²) | 46.4 |
| Material | Steel |
| Oil Capacity Advance (cm³) | 715 |
| Outside Diameter D (mm) | 137 |
| Plunger Diameter F (mm) | 66.5 |
| Plunger Internal Thread O (inch) | M5 |
| Plunger Thread Length P (mm) | 8 |
| Plunger Type | Solid |
| Return Type | Single-Acting, Spring Return |
| Saddle Diameter J (mm) | 50 |
| Saddle Protrusion from Plunger K1 (mm) | 3 |
| Surface Treatment | Paint |
