Product Lines : Industrial Tools
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR-400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life

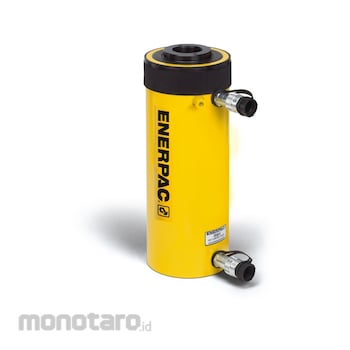

Enerpac Hydraulic Cylinder 30 Ton (Double Acting) Hollow Plunger
#Grup produk P105575649
Sebelum PPN:
Rp51.999.900 - Rp109.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 326 |
| Cylinder Effective Area Advance (cm²) | 46.6 |
| Cylinder Effective Area Retract (cm²) | 30.4 |
| Material | Steel |
| Plunger Diameter F (mm) | 54.1 |
| Plunger Internal Thread O (inch) | 19/16- 16 un |
| Plunger Thread Length P (mm) | 19 |
| Plunger Type | Hollow |
| Return Type | Double-Acting, Hydraulic Return |
| Saddle Diameter J (mm) | 54 |
| Saddle Protrusion from Plunger K1 (mm) | 9.7 |
| Surface Treatment | Paint |
