Product Lines : Industrial Tools
- Collar threads, plunger threads and base mounting holes for easy fixturing
- Baked enamel finish for increased corrosion resistance
- Removable hardened saddles protect plunger during lifting and pressing
- Built-in safety valve prevents accidental over-pressurization
- Plunger wiper reduces contamination, extending cylinder life
- CR-400 included on all models

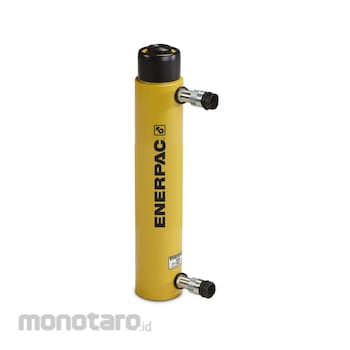

Enerpac Hydraulic Cylinder 30 Ton (Double Acting)
#Grup produk P105575630
Sebelum PPN:
Rp42.999.900 - Rp52.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 30 |
| Maximum Cylinder Capacity Advance (kN) | 295 |
| Base to Advance Port H (mm) | 38 |
| Cylinder Bore Diameter E (mm) | 165.1 |
| Cylinder Effective Area Advance (cm²) | 42.1 |
| Cylinder Effective Area Retract (cm²) | 19.1 |
| Material | Steel |
| Outside Diameter D (mm) | 212 |
| Plunger Diameter F (mm) | 127.0 |
| Plunger Type | Solid |
| Return Type | Double-Acting, Hydraulic Return |
| Saddle Diameter J (mm) | 126 |
| Saddle Protrusion from Plunger K1 (mm) | 12 |
| Surface Treatment | Paint |
