Product Lines : Industrial Tools
- Relief valves prevent damage in case of over-pressurization
- Baked enamel finish for increased corrosion resistance
- Collar threads enable easy fixturing
- Double-acting operation for fast retraction
- Nickel-plated, floating center tube increases product life
- Hollow plunger allows for both pull and push forces
- CR-400 couplers and dust caps included on all models
- Plunger wiper reduces contamination, extending cylinder life

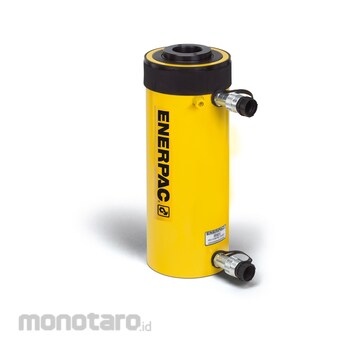

Enerpac Hydraulic Cylinder 150 Ton (Double Acting) Hollow Plunger
#Grup produk P105575551
Spesifikasi
| Maximum Operating Pressure (bar) | 700 |
|---|---|
| Capacity Class (tonnage) | 150 |
| Maximum Cylinder Capacity Advance (kN) | 1429 |
| Stroke (mm) | 203 |
| Collapsed Height A (mm) | 349 |
| Extended Height B (mm) | 552 |
| Base to Advance Port H (mm) | 31 |
| Cylinder Bore Diameter E (mm) | 123.9 |
| Cylinder Effective Area Advance (cm²) | 204.1 |
| Cylinder Effective Area Retract (cm²) | 102.6 |
| Material | Steel |
| Oil Capacity Advance (cm³) | 4144 |
| Oil Capacity Retract (cm³) | 2083 |
| Outside Diameter D (mm) | 159 |
| Plunger Diameter F (mm) | 91.9 |
| Plunger Type | Hollow |
| Return Type | Double-Acting, Hydraulic Return |
| Saddle Diameter J (mm) | 91 |
| Saddle Protrusion from Plunger K1 (mm) | 12 |
| Surface Treatment | Paint |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
