Spesifikasi
Maximum Operating Pressure (bar) | 700 |
---|---|
Capacity Class (tonnage) | 100 |
Maximum Cylinder Capacity Advance (kN) | 931 |
Stroke (mm) | 76 |
Collapsed Height A (mm) | 254 |
Extended Height B (mm) | 330 |
Base Mounting Holes Bolt Circle U (mm) | 50,8 |
Base Mounting Holes Thread V | 5/16inch-18 unc |
Base to Advance Port H (mm) | 25 |
Collar Thread Size W | 2 3/4inch-16 |
Collar Thread W (inch) | 2 3/4-16 |
Cylinder Bore Diameter E (mm) | 165.1 |
Cylinder Effective Area Advance (cm²) | 133 |
Material | Steel |
Oil Capacity Advance (cm³) | 1011 |
Outside Diameter D (mm) | 212 |
Plunger Diameter F (mm) | 35.1 |
Plunger Type | Hollow |
Return Type | Single-Acting, Spring Return |
Surface Treatment | Paint |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk

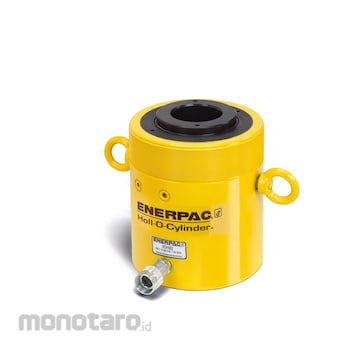

Description
Product Lines : Industrial Tools
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Features CR400 Coupler
- Hollow plunger design allows for both pull and push forces
- Single-acting spring return
- Nickel-plated, floating center tube on models over 20 tons increases product life
- Baked enamel finish for increased corrosion resistance
- Collar threads for easy fixturing
Features CR400 Coupler
