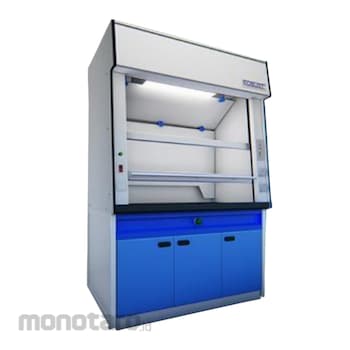

Robust Fumehood

MFR. ROBUST Certified ISO 9001-2015 & 14001-2015 Registered Product
Size : 1800 x 890 x 2350 (H) mm
Size outer : upper cabinet : 1800 x 850 x 1450 (h)mm
lower cabinet : 1800 x 850 x 900 (h)mm
Size inner : upper cabinet : 1650 x 700 x 1300 (h)mm
lower cabinet : 1650 x 700 x 750 (h)mm
Spesification :
Inside Wall & Baffle Phenolic Resin Laboratory grade 6 mm
Outside Wall Phenolic Resin Laboratory grade 16 mm
Top Table, Epoxy Resin Laboratory Grade thicknes 15 mm Heat Resistance until 350 °C
Lower cabinet :
Include Storage base cabinet (4 doors) ea.:
Complete with Acessories are :
- 1 Set Double electric socket Legrand IP 55
- 1 Set Water fitting front control and valve
- 1 Set PP Cup Sink Type 500 dia. 17 cm include PP trap
- Flourescent lamp water tight 2x20 VA include on/off switch
- 1 Set Blower Chemical resistance blower material Polypropylane
- power 1 HP, 50 Hz, 3phase,380 V
Include electric motor, magnetic switch & indicator
lamp, PVC ducting dia. 6" - 8" max. 6 meter
# Volume of air :+/- 3300 M3/hr or 1942,3 CFM
# Static Pressure : +/- 250 Pa( N/M2 )
# Drive horse power : 1 HP, 50 hz, 3 phase
# Speed of fan : 1400 Rpm
# Speed of motor : 1400 Rpm
Specification:
All items of work that quoted by locally production
and will have technical specification as follows:
-Galvanized Steel Structure , finish epoxy Powder coating chemical resistance
- Hing, reel and plastic handles ex Import
- safety glass sash door : laminated / tempered clear glass 6 mm
