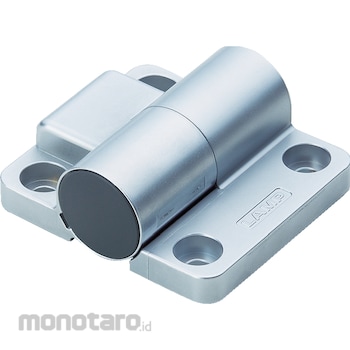

SUGATSUNE Adjustable One Way Torque Hinge
#Grup produk P105523327
Spesifikasi
| Total Length (mm) | 55 |
|---|---|
| Width (mm) | 60 |
| Thickness (mm) | 7.5 |
| Threaded Hole Number | 4 |
| Finish Material | Bracket: Zinc Alloy, Cap: Polypropylene(PP) |
| Hole Dia. (mm) | 5.4 |
| Torque (N m) | 0 to 10 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
- Attach so that the shaft centers are level and not displaced.
- Separately install a stopper to prevent opening/closing outside of the range of motion.
Feature
- A torque hinge where torque is only generated in one direction.
- As torque in the opposite direction is not generated, this makes it possible to smoothly operate a door, etc.
- The torque can be adjusted in a range between 0 to 10N/m.
Use
- Doors on medical equipment and FA/OA equipment.
