SKF Radial Shaft Seal dengan Case Double Logam
#Grup produk P105522568
Spesifikasi
| Sealing Lip Material | Nitrile Rubber (NBR) |
|---|---|
| Design | CRWH1 |
| Allowable Circumferential Speed (m/s) | 5.57 |
| Auxiliary Lip | No |
| Circumferential Speed (m/s) | max. 5.57 |
| Housing Bore Diameter D (mm) | 47.04 |
| Maximum Operating Temperature (°C) | max. 100 |
| Maximum Rotation Speed (rpm) | max. 3720 |
| Minimum Operating Temperature (°C) | min. -40 |
| Pressure Differential (N/mm²) | 0.07 |
| Rotation Speed (rpm) | 3720 |
| Seal Width b (mm) | 7.95 |
| Shaft Diameter d1 (mm) | 28.58 |
| Type of Outside Diameter | Metal-cased with sealant coating on the outside diameter |
| Unit System | Inch |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

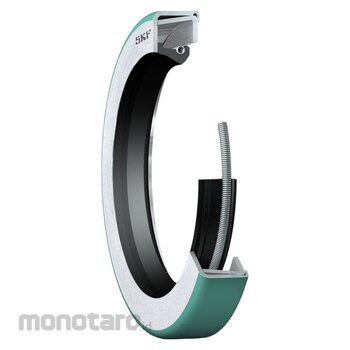

Radial shaft seals are used between rotating and stationary machine components, or between components in relative motion. CRWH1 seals are designed with a double metal case, an SKF WAVE lip made of elastomer with a higher pumping rate to reduce heat generation, and a garter spring to optimize sealing against the shaft. Most of the seals feature the SKF Bore Tite coating on the outside diameter that helps fill small imperfections in the housing bore.
Warning
Image may differ from product. See the technical specification for details.Feature
- For oil or grease- With garter spring
- WAVE lip creates higher pumping rate
- WAVE lip has less friction between shaft and lip
- WAVE lip has a lower temperature at the contact point
