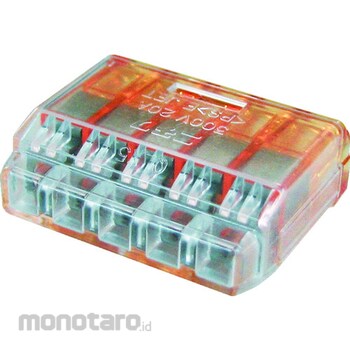

NICHIFU Quick Lock
#Grup produk P105504784
Kondisi Barang:
Authorized Partner
Spesifikasi
| Applicable Wire (Copper Wire) Single Wire (mm) | φ1.6-2.0 |
|---|---|
| Compatible Electric Stranded Wire (mm²) | Not compatible with stranded wire |
| Compatible Wire (Copper/Single Wire) (mm) | φ1.6, φ2.0 |
| Compatible Wire (Single Wire) (mm) | φ1.6-2.0 |
| Height (mm) | 9.1 |
| Length (mm) | 20.5 |
| Maximum Operating Temperature (°C) | 80 |
| Rated Current (A) | 20 |
| Rated Voltage (V) | 300 |
| Wire Conjugation Range Single Wire (mm) | φ1.6-2.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Strip the wire coating to match the strip gauge. Please straighten the bent wire before use. Insert the wire straight into the back and check visually. Insufficient insertion may cause overheating. When putting it in the box, do not bend it near the wire insertion slot of the connector.Feature
It is a unique 2-point contact spring structure. You can visually check the wiring with the transparent cover. It is a JIS C2817 (plug-in type electric wire connector for indoor wiring) compliant product. (Certified inspection agency: Dokumentasi Produk
