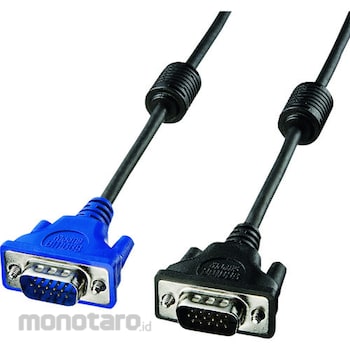

Sanwa Display Cable

Since it uses a small diameter cable, it is not suitable for use as an extension or as a switch.

For connecting the PC and display.
Extra-fine display cable, mini D-sub 15pin analog RGB (VGA) cable with ferrite core. Uses a 75Ω coaxial cable (for video signals). Slim cable/slim connector A small diameter cable with an outer diameter of 4.5 mm and a compact connector (about 40% more compact than the conventional volume) are used to make the cable handling cleaner. Composite coaxial cable This is a composite coaxial cable that uses a 75Ω coaxial cable for the video signals of R, G, and B. It is a high-quality cable that is resistant to noise and has extremely low signal loss, so image deterioration is extremely low even in high resolution modes. Double ferrite core Ferrite cores that absorb high-frequency noise are mounted on both ends of the cable. Double shielded cable A sealed aluminum shield is applied to the inside of the copper high-density braided shield material to protect important data from most noise from low frequencies to wide areas. It is a flexible cable with a small diameter but excellent flexibility, so it protects the internal core wire from impact and vibration. The inside of the design mold connector is hardened with a resin mold, and the entire surface is shielded to prevent external interference and noise countermeasures are perfect. It also has excellent vibration resistance and impact resistance. Gold-plated pin It is gold-plated so that it is resistant to rust and there is no concern about signal deterioration due to aging. When using these, make sure that the distance between the personal computer and the display is 5 m or less. Lead-free solder The lead-free solder, which contains almost no lead, is used to fix the core wire of the cable to the pins inside the connector.
Product specifications
