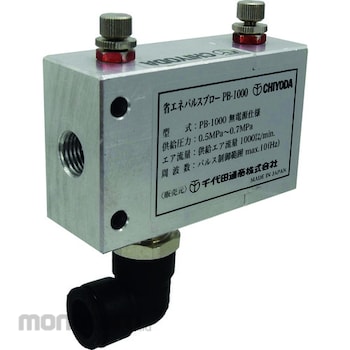

Chiyoda Seiki Air Volume Regulator
#Grup produk P105493947
Spesifikasi
| Depth (mm) | 30 |
|---|---|
| Height (mm) | 50 |
| Hose Mounting Port | Rc3/8 |
| Material | Body: Aluminium , Piston: Polyacetal resin , Packing: NBR , Fittings: Brass/PBT |
| Nozzle diameter (mm) | 4 or less |
| Nozzle Mounting Port | Rc1/4 |
| Operating Air Pressure (MPa) | 0.3-0.7 |
| Width (mm) | 80 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Blow off chips. Various air blows. Cooling by air blow during cutting, cutting and polishing work.It does not require a power supply and is driven only by air supply to generate pulse blow (intermittent blow). Two adjustment valves are attached for fine adjustment. Can be used at low pressure. The surface of the main body is shot blasted. Air consumption can be reduced by about 50% by repeatedly turning the air on and off.
