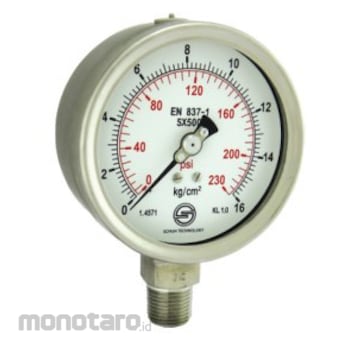

SCHUH All Stainless Steel Pressure Gauge

Application
SX Series is o premium design pressure gouge with fully stainless steel construction, liquid fillable and with vorious option used in extrame corrosive & severe environment. SX series con be incorporate with most accessories such as Diaphrogm Chemical seal, Siphon, Dampener, etc..to further extend it
usages. Commonly, uses in Process industries, Mining, Power plants, Steel mills, Pulp & Paper, Water & Sewage, Petrochemical plants, etc..
Technical Specification SX Series
- Nominal Size: 100 and 150 mm
- Accuracy Class: Class 1.0
- Ingress Protection: IP 65 [Weather tight)
- Connection Size: G 1/2 or 1/2NPT
- Scale Range :
Pressure 0. 1600 bar
Vacuum -1 bar.. 0
Compound -1.. 24 bar
- Tube Element Shape
P <= 100 bar in C tube
P > 100 bor in helicoil
- Filling : Dry or liquid filled
- Operating Temperature:
Ambient temperature -30°.. +70°C
Medium temperature 180°C Max.
- Temperature Error :
Additional error when pressure element temperature
deviates from reference temperature +20°C {+68°F)
be 20.4% / 10°C (50°F| rising or falling
- Over Pressure Limit :
130% of F.S. Ps 100 bar
115% of FS. P > 100 bar
- Dial Graduation :
Black graduation on white for single range
Black and red graduation on while for dual ranges
