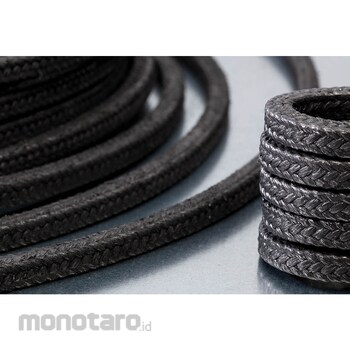

LATTYgraf 6988 EF
PACKING FOR USE ON FITTINGS UP TO 600°C AND WITH MEDIUM AND HIGH-PRESSURE STEAM
Packing made from an exclusive LATTY yarn based on a high-resistance mix of carbon and expanded graphite yarns, impregnated and coated with a graphite-based mix. LATTYgraf 6988 EF contains an inhibitor developed from an exclusive process to provide unlimited protection of the stem, stuffing box housing and stuffing box from corrosion over time. Limitation: precautions in oxydising environment Available in preformed packing rings, on request. Low-friction high-temperature carbon packing meeting the requirements of fugitive emissions.
Latty Gland Packing Carbon-Graphite (Mechanical seal) Graf 6988Ef
#Grup produk P105311652
Sebelum PPN:
Rp10.999.900 - Rp46.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Composition | Carbon-Graphite |
|---|---|
| Pressure (bar) | 0 to 400 |
| Temperature (°C) | -200 to 600 |
| Speed (m/s) | < 1 |
| Ph | 0-14 |
| Approvals | ISO 15848 –1, classe BH, TA Luft VDI 2420 |
| Fluids | For All Fluids |
| Material | High-performance valves and fittings, heat-transfer and all high-temperature fluids, energy production, refineries |
