LATTYgraf 6940 EF
INDUSTRIAL VALVES : PACKINGS FOR FUGITIVE EMISSIONS APPLICATIONS

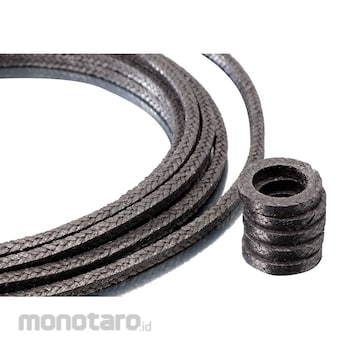

Packing made of expanded graphite yarns reinforced with Inconel wires, coated with a graphite-based mix doped with a friction-enhancing agent. LATTYgraf 6940 EF contains a corrosion inhibitor to protect the valve stem and the stuffing box. Heat transfer fluids and all high-temperature fluids. Note: LATTYgraf 6940 EF is recommended as anti-extrusion rings when used in combination with LATTYgraf 6960 EF, LATTYgraf EF4 ou LATTYflon 3260 LM. Limitation: precautions in oxydising environment Available in preformed packing rings, on request. Low-friction anti-extrusion packing for high-performance and high-temperature applications.
Latty Gland Packing Carbon-Graphite (Mechanical seal) Graf 6940Ef
#Grup produk P105311634
Sebelum PPN:
Rp5.899.900 - Rp42.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Pressure (bar) | 0 to 400 |
|---|---|
| Temperature (°C) | -200 to 600 |
| Speed (m/s) | < 1 |
| Ph | 0-14 |
| Approvals | Tested in compliance with the draft standard ISO 15848 on fugitive emissions. Leak < 500 ppm. TUV VDI 2440, OXYGEN SERVICE |
