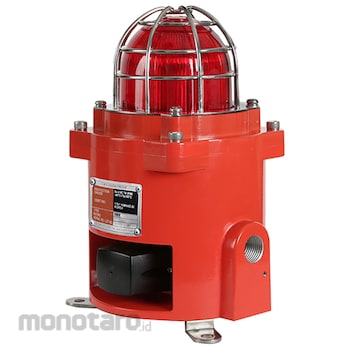

Explosion Proof Signal/ Warning Light and Electric
Sounder Combination
Qlight Warning Pole QNES Series
#Grup produk P105311236
Spesifikasi
| Color | Red |
|---|---|
| Diameter (mm) | Ø98 (Cage) |
| Height (mm) | 225 |
| Length (mm) | 130 |
| Material | Lens-Tempered Glass Housing-Al |
| Cable Entry | 1/2\" NPT |
| Protection Rating | IP66 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Explosion proof, multifunctional, and compact LED signal light and electric sounder combination designed for use in explosive gas environments with Ex d ⅡC rating- Features excellent shock and vibration resistance, maintenance significantly reduced with long-lasting LED light source
- Features superior durability with aluminum housing(QNES)
- STS housing provides superior durability and corrosion resistance(QNES-SUS)
- Features excellent corrosion resistance with brass housing(QNES-BS)
- Fully enclosed structure with protection rating of IP66
- Housing standard color : Red, MUNSELL No. 7.5BG 7/2
- Cable entry : 1/2" NPT
- Sound volume: Max. 110dB at 1m
- Flashing rate(LF type) : 60-80 flashes/min.
- Strobe rate(LS type) : 70-80 flashes/min.
- Simulated revolving rate(LR type) : 120-140RPM
- Materials : Lens-Tempered Glass, Inner lens-PC, Bracket-STS304, Protection cage-STS316, Housing-Al(QNES), STS(QNES-SUS), Brass(QNES-BS)
- Certificates : ATEX, IECEx, KCs
- Protection rating : ATEX - Ⅱ2G Ex dⅡC T5/ T6, IP66, IECEx, KCs - Ex dⅡC T5/ T6, IP66
- Ambient operating temperature : -40°C ≤ Tamb ≤ +60°C, -40°C ≤ Tamb ≤ +45°C
