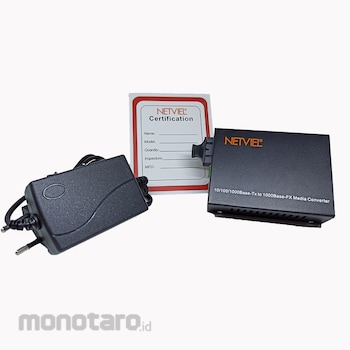

NETVIEL Media Converter 10/100/1000TX to 1000SX Multimode 550m
#Grup produk P105306377
Spesifikasi
| Dimension (HxWxD) (mm) | 70x94x25 |
|---|---|
| Gross Weight (kg) | 0.4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This Media Converter is 10/100/1000Mbps fast Ethernet converter. The converter mediates between a 10/100/1000Base-TX segment and a 1000Base-FX segment. It is primarily designed for large, higher speed/bandwidth demanding work groups that require expansion of the Ethernet network. It can extend the conventional 10/100M Ethernet or 1000M Ethernet from 275 m up to 20 km via the Fiber-optical Line (depends on the device). It is high performance, cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Feature
• Provide one fiber duplex connector (SC) and one UTP connector (RJ45)• Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
• Auto-detection of half/full duplex transfer mode for TX port
• Auto-negotiation of 10/100/1000Mbps rate and Auto-MDI/MDIX for TX port
• Provide switch configuration of half/full duplex transfer mode for FX port
• Extend fiber distance up to 550m for multimode fiber and 20km for single-mode fiber
• Compacts size for easy installation and working with Media Chassis
• Easy-to-view LED indicators provides status to easily monitor network activity Internal power supply
• 1000Base-SX: 50/125μm or 62.5/125μm multimode fiber cable, up to 275/550m
• 1000Base-LX: 9/125μm single-mode fiber optic cable up to 20km (longer distance available as optional)
• 1000Base-T: 2-pair Cat5e/Cat6 UTP cable, up to 100 meters
• Back pressure flow control for full duplex IEEE802.3 X and half duplex.
Use
• Local Area Network (LAN)• Enterprise Network
• Campus Network
• Wide Area Network (WAN)
• FTTX
• Point-to-point fiber networks.
