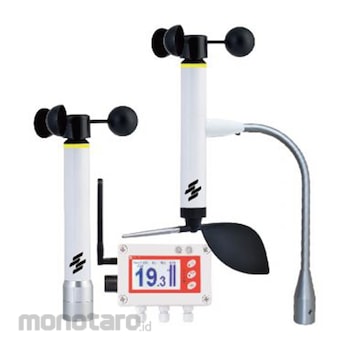

SCARLET TECH Intrinsically Safe Wireless Anemometer
#Grup produk P105221702
Spesifikasi
| ATEX Explosion-proof Level | EX II 2 G EX ib IIB T4 |
|---|---|
| Wind Speed Accuracy (%) | +/- 3 |
| Wind Speed Resolution (m/s) | 0.1 |
| Units of Measurement | m/s, km/h, knots, mph, Bf |
| Wind Direction Measurement Range | 0-360° ,no blank sector, contactless magnetic measuring principle |
| 4-20 mA Output (m/s) | 4 mA=0, 20 mA=10...50(programmable) |
| Antenna input (receiver) (ohm) | 50 , SMA connector |
| Audible Alarm (dB) | 85...90 |
| Bluetooth LE | Optional. Range up to 40m |
| Data transmission | every 2 seconds |
| Dimensions - Receiver (mm) | 150x80x55 |
| Dimensions - Sensor | height 210 mm; diameter(cup to cup) 120 mm |
| Measurement Interval (s) | 2 |
| Measurement Range Wind Speed (m/s) | 0.3…50 m/s |
| Operating Voltage (V) | 12...24 DC |
| Relay Contacts Output (A/V) | 4 x relays, 2/24 |
| Sensor battery | 3.6V AA Lithium battery, Type: LS14500EX, Brand: SAFT |
| Temperature Measurement Range (°C) | -30…55 |
| Temperature Resolution (°C) | 0.5 |
| Transmission Frequency | 868 MHz/ +10 dBm(standard); 908 MHz, 922 MHz (customizable) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Intrinsically Safe ATEX approved wind speed and direction combined sensor. First of its kind in the world to provide a state-of-art safety option for hazardous environments.
