The Scarlet WL-11 Wind Speed Data Logger is designed to provide an affordable and easy-to-use solution to wind site evaluation and monitoring wind generator performance in real time. It records wind speed, gust, and direction, time and date, temperature, and other important wind parameters. The wireless transmission ranges up to 400 meters or 1300 meters (WL-11X). All data are stored within SD card (included) in data-exchange format.

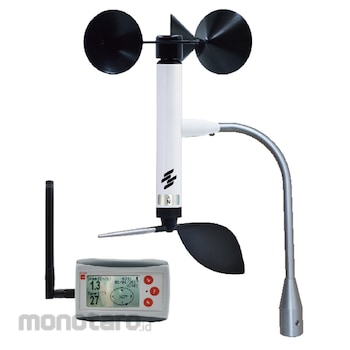

SCARLET TECH Wireless Anemometer
#Grup produk P105221678
Spesifikasi
| Wind Speed Measurement Range () | 0.1...50 |
|---|---|
| Wind Speed Resolution (m/s) | 0.1 (under 9.9); 1 (Above 10) |
| Units of Measurement | m/s, km/h, knots, mph, Bf |
| Dimensions - Sensor (Hxmm) | height 210 mm; diameter cup to cup 120 mm |
| Dimensions - Display unit (mm) | 94x63x28 |
| Display updating | every 2 seconds |
| Transmission Frequency | 868 MHz / +10dB; 908 MHz, 922 MHz (requested by clients) |
| Battery - sensor | 1 x 3.6 V AA Lithium battery |
| Battery - display unit | 2 x 1.5 V AA |
| Data Logging | average and maximum wind speed, wind direction, temperature |
| Data recording | up to 12 months, .txt and ASCII data format |
| Logging interval | 10 s, 1 min, 10 min, 60 min |
| Mounting | the sensor mounts on a pipe with ø 20 mm diameter |
| Temperature Measurement Range (°C) | -30....+60, +/- 1 |
| Wind Speed Accuracy (%) | +/- 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
easy-to-use solution for wind site evaluationshows and store all vital wind data
range up to 400 meters or 1300 meters (WL-11X)
easy installation without running cables
replaceable anemometer cups
24h wind speed and temperature history graphs
7 days history of instant and average wind speed
