A precision-grade barometer that replaces the Fortan mercury barometer.
Wide measurement range of 600 to 1100 hPa. High resolution in 0.01hPa units.
Uses a highly visible red LED.
Abundant calculation display functions: MAX (highest value), MIN (lowest value), AVG (moving average), REL (relative value).
Equipped with RS-232C output as standard. Measurement data can be recorded by connecting an optional dedicated printer.
The upper and lower limit alarm values are set individually. When the alarm value is exceeded, the LED lamp blinks and the contact output notifies you.

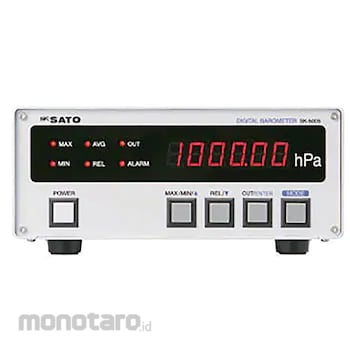

Sato Keiryoki Mfg Digital Barometer
#Grup produk P105198112
Spesifikasi
| range of measurement | 600.00hPa-1100.00hPa |
|---|---|
| Output | RS-232C / printer output, upper and lower limit alarm output, non-voltage contact output (contact capacity: AC / DC280V / 100mA) |
| Power Supply (V) | DC 9 (dedicated AC adapter) |
| Measurement Accuracy (hPa) | ± 0.50 (700.00hPa to 1100.00hPa, 10 to 40°C), ± 1.00 (other than the one on the left) |
| Dimensions (mm) | 200x90x280 (excluding protrusions) |
| Sensor | Piezoresistive pressure sensor |
| Resolution (hPa) | 0.01 |
| usage environment | -10 to 50°C, 85%RH or less (however, no condensation) |
| Display Function | 7-segment red LED, 6 digits |
| Display Sampling (s) | About 1 |
