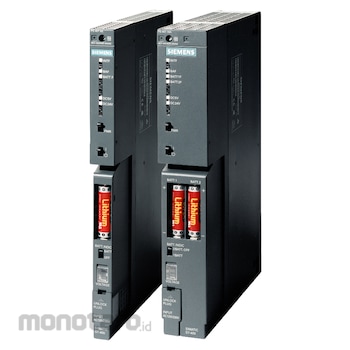

SIEMENS SIMATIC S7-400, Power Supply PS 405
#Grup produk P105196691
Spesifikasi
| Rated Value (DC)(V) | at 24 DC/48 DC/60 DC |
|---|---|
| Mains/Voltage Failure Stored Energy Time (ms) | 20 |
| Input Current Rated Value at 24V DC (A) | 2 |
| Input Current Rated Value at 48V DC (mA) | 1000 |
| Input Current Rated Value at 60V DC (mA) | 800 |
| Inrush Current Max. (A) | 18 (Full width at half maximum 20ms) |
| Active Input Power (W) | 48 (Typycal) |
| Backup Battery (optional) | Yes; 1x lithium AA; 3.6V/2.3Ah |
| Design of Electrical Connection (mm²) | 3x1.5, solid or stranded wire with end sleeve, external diameter 3 to 9mm |
| Dimensions (WxHxD) (mm) | 25x290x217 |
| Output Current for Backplane Bus (24V DC) Max. (A) | 0.5 (idling-proof) |
| Output Current for Backplane Bus (5V DC) Max. (A) | 4 (no base load required) |
| Output Voltage Rated Value (DC)(V) | at 5 DC/24 DC |
| Power Loss Typical (W) | 16 |
| Weight (g) | approx. 760 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
SIMATIC S7-400, power supply PS 405: 4 A, 24/48/60 V DC, 5 V DC/4 A
